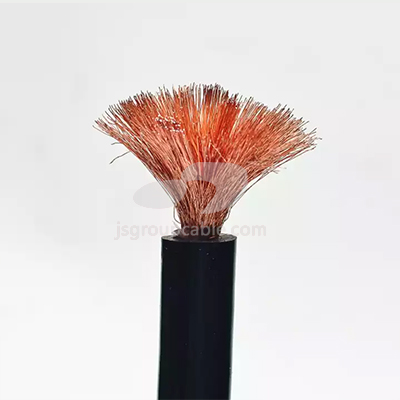

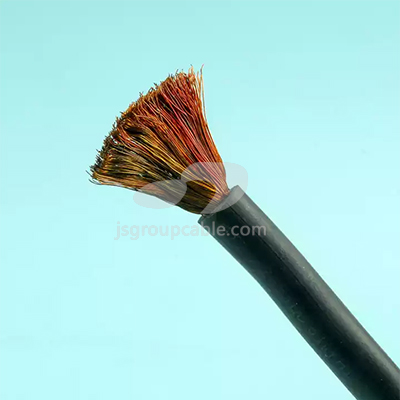

The cable can be used in the connectors of electric weld and pliers of the electric welding whose toward earth voltage of the low voltage is not more than A.C.200V and the pulsant D.C.peak value is 400V,the long-time permissible working temperature of cable is not more than 65°C.

  • Description

1.Application Of Welding Cable

Industrial machinery:

Welding cable is also used to connect industrial machinery that requires high-current electrical power. They are commonly used in manufacturing plants, refineries, and power plants.

Automotive industry:

It is used in the automotive industry to weld and repair vehicle parts. They are also used to connect battery chargers and jump-starting equipment.

Construction:

This cable is used in the construction industry for welding and repairing steel structures, bridges, and buildings.

Marine industry:

Welding cables are used in the marine industry to weld and repair ships, boats, and other watercraft.

Aerospace industry:

Used in the aerospace industry to weld and repair aircraft components, including fuselages, wings, and engine parts.

2.Service Conditions Of

The cable can be used in the connectors of electric weld and pliers of the electric welding whose toward earth voltage of the low voltage is not more than A.C.200V and the pulsant D.C.peak value is 400V,the long-time permissible working temperature of cable is not more than 65°C.

2.Standard Of Welding Cable

This cable can be produced according to the standard GB5013.6-60245 IEC81.

Name and IEC Standard :

(1). Rubber Sheathed Welding Cable 245 IEC 81

(2). Rubber Sheathed Welding Cable 245 IEC 82, which is made of chloroperene or the composite stretchy materials.

Conductor Materials: Copper, Tinned Copper or CCA

Jacket: Rubber or PVC

3.Types Of Welding Cable

Model Name Working Temperature of Core≤(oC)
YH Natural Rubber Sheath for Welding Cable 65
YHF Horoprene Rubber or Other Syntheitic Sheath Welding Cable 65

4.Specifications

Conductor Nominal Section (mm²) Conductive Core Thickness of Section Sheath (mm) Average Outer Diameter (mm) 20oC Conductor Resistance≤ (Ω/km) Reference Weight(kg/km)
Number/Diameter of Core(mm) Min Max YH YHF
10 322/0.20 1.8 7.5 9.7 1.91 146 153.51
16 513/0.20 2.0 9.2 11.5 1.16 218.9 230.44
25 798/0.20 2.0 10.5 13.0 0.758 316.6 331.15
35 1121/0.20 2.0 11.5 14.5 0.536 426 439.87
50 1596/0.20 2.2 13.5 17.0 0.379 592.47 610.55
70 2214/0.20 2.4 15.0 19.5 0.268 790 817.52
95 2997/0.20 2.6 17.0 22.0 0.198 1066.17 1102.97
120 1702/0.30 2.8 19.0 24.0 0.161 1348.25 1392.55
150 2135/0.30 3.0 21.0 27.0 0.129 1678.5 1698.72
185 1443/0.40 3.2 22.0 29.0 0.106 1983.8 2020.74
