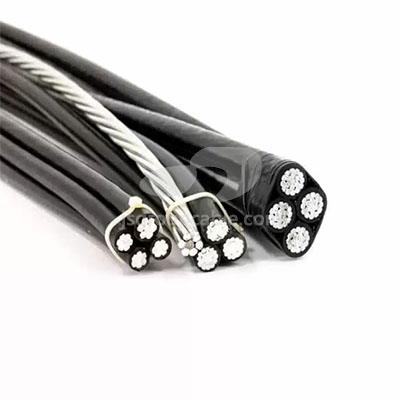

Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s service head where connection to the service entance cable is made.
Used to supply 3 phase power, usually from a pole-mounted transformer to the use`s service head where connection to the service entance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.
Conductors are concentrically stranded,compressed 1350-H19 aluminum.Insulated with either polyethylene or XLPE crosslinked polyethylene.Neutral messengers are concentrically stranded 6201,AAC or ACSR.One conductor is manufactured with an extruded ridge for phase identification.
Quadruplex service drop cable meets or exceeds the following ASTM specifications;
B-230 Aluminum Wire,1350-H19 for electrical Purposes.
B-231 Aluminum conductors,Concentric-Lay-Stranded.
B-232 Aluminum conductors,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR).
B-399 Concentric-Lay-Stranded,6210-T81-Aluminum
Service Drop cable meets or exceeds all applicable requirements of ICEA-S-76-474
NOTE:Designated sizes are:ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
Conductor temperature of 90 oC XLPE,75 oC for Poly;ambient temperatures of 40 oC; emissivity 0.9;2ft/sec/wind in sun.To determine current ampacity by conductor size,please consult The National Electric Code,latest edition.
Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft(lbs) | Rating (Amps) |
||||||
Size AWG | Strand | Insulation Thickness(mls) | Size AWG | Strand | Breaking Strength (lbs) |
XLPE | Poly | XLPE | Poly | |
AAC NEUTRAL-MESSENGER | ||||||||||
Clydesdale | 4 | Solid | 45 | 4 | 7 | 881 | 208 | 201.8 | 100 | 80 |
Pinto | 4 | 7/w | 45 | 4 | 7 | 881 | 223 | 207.9 | 100 | 80 |
Mustang | 2 | 7/w | 45 | 2 | 7 | 1350 | 333 | 312.6 | 135 | 105 |
Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1990 | 529 | 504.5 | 180 | 140 |
Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2510 | 649 | 620.5 | 205 | 160 |
Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 3310 | 799 | 765.6 | 235 | 185 |
Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 4020 | 986 | 946.7 | 275 | 210 |
Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6146 | 1546 | 1519.2 | 370 | 280 |
ACSR NEUTRAL-MESSENGER | ||||||||||
Morochuca | 6 | Solid | 45 | 6 | 6/1 | 1190 | 152 | 147.4 | 75 | 60 |
Chola | 6 | 7/w | 45 | 6 | 6/1 | 1190 | 162 | 151.7 | 75 | 60 |
Morgan | 4 | Solid | 45 | 4 | 6/1 | 1860 | 226 | 220 | 100 | 80 |
Hackney | 4 | 7/w | 45 | 4 | 6/1 | 1860 | 241 | 226.1 | 100 | 80 |
Palomino | 2 | 7/w | 45 | 2 | 6/1 | 2850 | 362 | 342.6 | 135 | 105 |
Costena | 1/0 | 19/w | 60 | 1/0 | 6/1 | 4380 | 575 | 550.6 | 180 | 140 |
Grullo | 2/0 | 19/w | 60 | 2/0 | 6/1 | 5310 | 707 | 678.7 | 205 | 160 |
Suffolk | 3/0 | 19/w | 60 | 3/0 | 6/1 | 6620 | 872 | 838.9 | 235 | 185 |
Appaloosa | 4/0 | 19/w | 60 | 4/0 | 6/1 | 8350 | 1079 | 1039.2 | 275 | 210 |
Bronco | 336.4 | 19/w | 80 | 336.4 | 18/1 | 8580 | 1613 | 1568.2 | 370 | 280 |
Gelding | 336.4 | 19/w | 80 | 4/0 | 6/1 | 8350 | 1548 | 1494.3 | 370 | 280 |
6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
Bay | 6 | Solid | 45 | 6 | 7 | 1110 | 145 | 140.0 | 75 | 60 |
French Coach | 6 | 7/w | 45 | 6 | 7 | 1110 | 155 | 144.3 | 75 | 60 |
German Coach | 4 | Solid | 45 | 4 | 7 | 1760 | 214 | 208.3 | 100 | 80 |
Arabian | 4 | 7/w | 45 | 4 | 7 | 1760 | 229 | 214.4 | 100 | 80 |
Belgian | 2 | 7/w | 45 | 2 | 7 | 2800 | 344 | 323.1 | 135 | 105 |
Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4460 | 546 | 521.1 | 180 | 140 |
Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5390 | 670 | 641.5 | 205 | 160 |
Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6790 | 825 | 791.8 | 235 | 185 |
Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8560 | 1019 | 979.7 | 275 | 210 |
