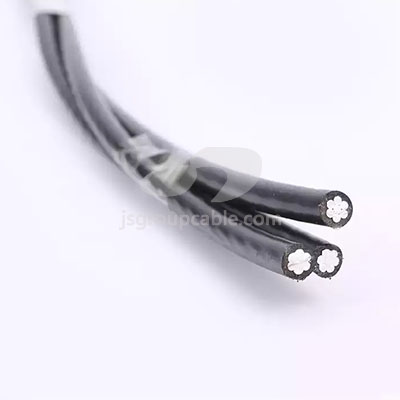

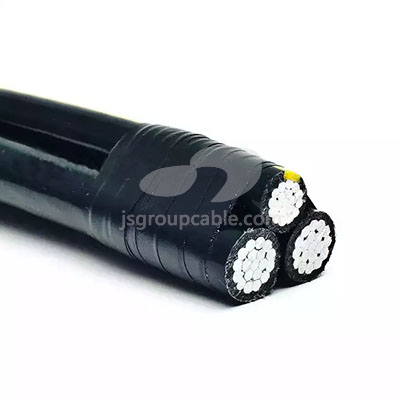

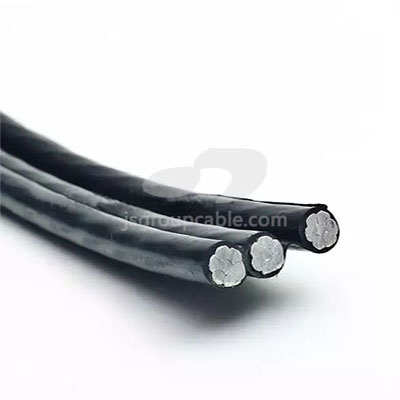

Triplex Service Drop-Aluminum Conductor

The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

  • Description

1.Application

To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation.

2.Construction

Concentric strand or compressed 1350-H19 conductor,polyethylene or crosslinked polyethylene insulation,concentric strand AAC,ACSR or 6201 alloy neutral messenger.

3.Standards

ASTM B-230,B-231,B-232 and B-339

ICEA S-76-474

4.Parameters

Code Name Phase Conductor Bare Neutral Messenger Weight Per 1000ft (lbs) Ampacity
(amps)
Size AWG Strand Insulation Thickness(mls) Size AWG Strand Breaking Strength
(lbs)
XLPE Poly XLPE Poly
6201 ALLOY NEUTRAL-MESSENGER
Minex 6 Solid 45 6 7 1110 106.6 102.9 85 70
Hippa 6 7 45 6 7 1110 113.2 105.7 85 70
Prawn 4 Solid 45 4 7 1760 158.4 154.1 115 90
Barnacles 4 7 45 4 7 1760 168.3 158.2 115 90
Shrimp 2 7 45 2 7 2800 253.7 239.7 150 120
Gammarus 1/0 7 60 1/0 7 4460 411.7 386.0 205 160
Leda 1/0 19 60 1/0 7 4460 402.7 386.0 205 160
Dungenese 2/0 7 60 2/0 7 5390 506.8 476.3 235 185
Cyclops 2/0 19 60 2/0 7 5390 495.3 476.3 235 185
Dlustra 3/0 19 60 3/0 7 6790 611.4 589.1 275 215
Lepas 4/0 19 60 4/0 7 8560 757.1 730.5 315 245
6201 ALLOY REDUCED NEUTRAL-MESSENGER
Artemia 4 Solid 45 6 7 1110 141.4 137.1 115 90
Crab 4 7 45 6 7 1110 151.3 141.2 115 90
Solaster 2 7 45 4 7 1760 226.6 212.6 150 120
Sandcrab 1/0 7 60 2 7 2800 368.8 343.1 205 160
Echinus 1/0 19 60 2 7 2800 358.8 343.1 205 160
Crayfish 2/0 7 60 1 7 3530 452.6 422.5 235 185
Sipho 2/0 19 60 1 7 3530 441.0 422.5 235 185
Fulgar 3/0 19 60 1/0 7 4460 543.4 521.1 275 215
Arca 4/0 19 60 2/0 7 5390 671.2 644.6 315 245
