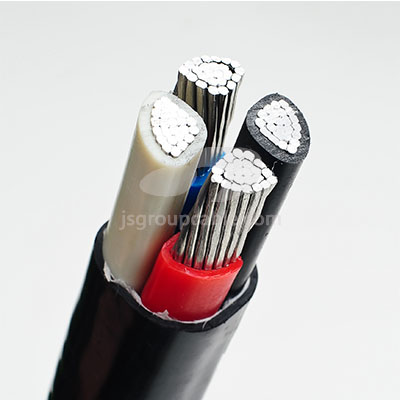

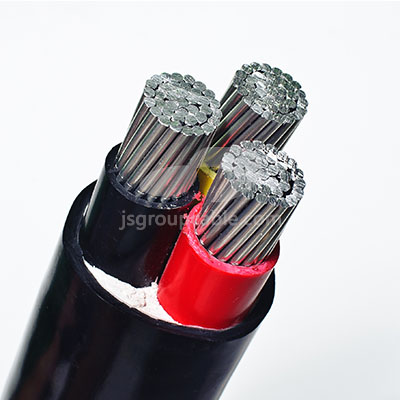

PVC insulated Power Cable

The PVC insulated power cable are suitable for fixed laying in power transmission and distribution lines with A.C.50HZ and voltage rating of up to or including 6KV.

Description

1.Performance

(1).The long-term permissible operation temperature of the conductor shall not be higher than 70℃

(2).Conductor maximum short circuit((less then 5 second) temperature shall not be higher than 160℃

(3).The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃

(4).Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance

(5).Light weight, perfect bending properties, installed and maintained easily and conveniently

(6).Rated voltage: 0.6/1kV, 3.6/6kV

(7).Conductors:Copper or Aluminum

(8).Number of cores: One, two, three, four, five

We can produced it according to IEC60502 and IEC60331,and the product can be produced against the standard of BS, DIN, or other standard according to customers’ requirement.

2.Application

Type	Name	Usage
VV	PVC insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
VLV
VY	PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cablecannot undertake mechanism outside force
VLY
VV22	PVC insulated steel belt armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV23	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV23
VV32	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV32
VV33	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV33
VV42	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV42
VV43	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
