ACSR have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.

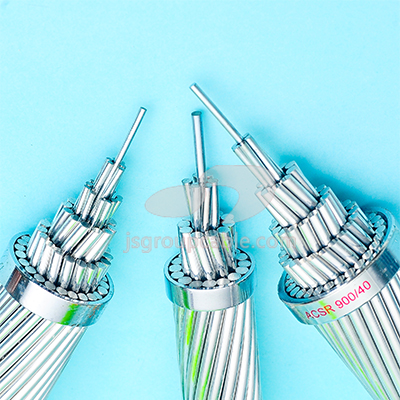

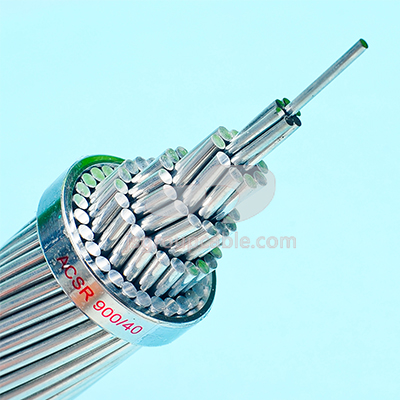

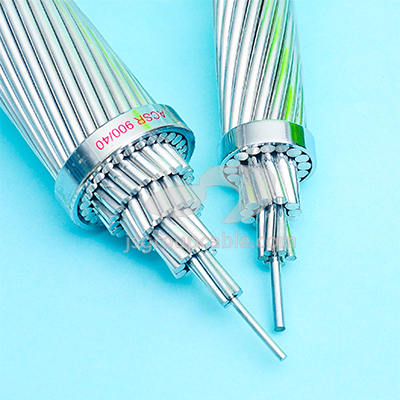

The structure of ACSR is simple, it consists of a solid or stranded steel core surrounded by strands of aluminium.Aluminum 1350-H-19 wires, concentrically stranded about a steel core.Core wire for ACSR is available with class A, B, or C galvanizing; “aluminized” aluminum coated (AZ); Or aluminum-clad (AW).Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.
ACSR Conductor is used for power transmission lines with various voltage levels and plays an important role in the electricity transmission field.
ASTM B232, BS215, CSA C49, DIN 48204, IEC 61089,GB/T1179-2008
Aluminum Conductor Steel Reinforced is in Accordance with ASTM B232-81
Code Name | Aluminum Sectional Area | Stranding No. and Dia. | ApproxOverall Dia(mm) | Max.D.C Resistance aApprox. Weight(kg/km)t 20℃(Ω/km) | Calculated Breaking Load(KN) | Max.D.C Resistance at 20℃(Ω/km) | ||
Cir.mils or AWG | (mm²) | Al. | St. | |||||
Turkey | 6 | 13.3 | 6/1.68 | 1/1.68 | 5.04 | 53.75 | 5303 | 2.157 |
Swan | 4 | 21.18 | 6/2.12 | 1/2.12 | 6.36 | 85.57 | 8302 | 1.355 |
Swanate | 4 | 21.12 | 7/1.96 | 1/2.61 | 6.53 | 99.56 | 10642 | 1.352 |
Sparrow | 2 | 33.59 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 12653 | 0.854 |
Sparate | 2 | 33.54 | 7/2.47 | 1/3.30 | 8.24 | 158.6 | 16171 | 0.852 |
Robbin | 1 | 42.41 | 6/3.00 | 1/3.00 | 9 | 171.4 | 15852 | 0.676 |
Raven | 1/0 | 53.52 | 6/3.37 | 1/3.37 | 10.1 | 216.2 | 19455 | 0.536 |
Quail | 2/0 | 67.32 | 6/3.78 | 1/3.78 | 11.3 | 272 | 23529 | 0.426 |
Pigeon | 3/0 | 85.14 | 6/4.25 | 1/4.25 | 12.8 | 344 | 29417 | 0.337 |
Penguin | 4/0 | 107.2 | 6/4.77 | 1/4.77 | 14.3 | 433.4 | 37055 | 0.268 |
Wax wing | 266800 | 135 | 18/3.09 | 1/3.09 | 15.5 | 430.5 | 30519 | 0.213 |
Partridge | 266800 | 134.9 | 26/2.57 | 7/2.00 | 16.3 | 545.4 | 26403 | 0.214 |
Ostrich | 300000 | 152.2 | 26/2.73 | 7/2.12 | 17.3 | 614.6 | 56410 | 0.19 |
Merlin | 336400 | 170.2 | 18/3.47 | 1/3.47 | 17.4 | 542.9 | 38487 | 0.169 |
Linnet | 336400 | 170.6 | 26/2.89 | 7/2.25 | 18.3 | 689.9 | 62918 | 0.169 |
Oriole | 336400 | 170.5 | 30/2.69 | 7/2.69 | 18.8 | 784.5 | 77267 | 0.17 |
Brant | 397500 | 201.6 | 24/3.27 | 7/2.18 | 19.6 | 762.5 | 65099 | 0.143 |
Ibis | 397500 | 201.3 | 26/3.14 | 7/2.44 | 19.9 | 813.5 | 72426 | 0.143 |
Lark | 397500 | 200.9 | 30/2.92 | 7/2.92 | 20.4 | 924.4 | 90485 | 0.144 |
Pelican | 477000 | 242.3 | 18/4.14 | 1/4.14 | 20.7 | 772.6 | 52302 | 0.119 |
Flicker | 477000 | 241.7 | 24/3.58 | 7/2.39 | 21.5 | 914.9 | 73243 | 0.12 |
Hawk | 477000 | 241.6 | 26/3.44 | 7/2.67 | 21.8 | 975.5 | 86011 | 0.12 |
Hen | 477000 | 241.3 | 30/3.20 | 7/3.20 | 22.4 | 1,110.00 | 105611 | 0.12 |
Osprey | 556500 | 282.4 | 18/4.47 | 1/4.47 | 22.4 | 900.7 | 60972 | 0.12 |
Parakeet | 556500 | 282.2 | 24/3.87 | 7/2.58 | 23.2 | 1068.00 | 84424 | 0.103 |
Dove | 556500 | 282.6 | 26/3.72 | 7/2.89 | 23.6 | 1142.00 | 100838 | 0.103 |
Eagle | 556500 | 282.1 | 30/3.46 | 7/3.46 | 24.2 | 1298.00 | 123470 | 0.103 |
Peacock | 605000 | 306.2 | 24/4.03 | 7/2.69 | 24.2 | 1159.00 | 95861 | 0.0948 |
Squab | 605000 | 307.2 | 26/3.87 | 7/3.01 | 24.5 | 1236.00 | 108317 | 0.0944 |
Duck | 605000 | 307.2 | 30/3.61 | 7/3.61 | 25.3 | 1414.00 | 128736 | 0.0945 |
Teal | 605000 | 307.2 | 30/3.61 | 19/2.16 | 25.2 | 1398.00 | 133082 | 0.0945 |
Kingbirad | 636000 | 323.1 | 18/4.78 | 1/4.78 | 23.9 | 1031.00 | 69722 | 0.089 |
Rook | 636000 | 323 | 24/4.14 | 7/2.76 | 24.8 | 1222.00 | 101038 | 0.0894 |
Egret | 636000 | 322.5 | 30/3.70 | 19/2.22 | 25.9 | 1472.00 | 14029 | 0.0897 |
Flamingo | 666600 | 337.2 | 24/4.23 | 7/2.82 | 25.4 | 1276.00 | 105478 | 0.0856 |
Gannet | 666600 | 338.3 | 26/4.07 | 7/3.16 | 25.8 | 1366.00 | 117258 | 0.0854 |
